PP Pipes: A Systematic Analysis And STANDARD Masterbatch
Polypropylene (PP) pipes are frequently used in building decoration materials. The unique chemical configuration of PP rapidly revealed its high strength and became a superpower in plastic industry. The use of PP with high flexibility and lack of cracking increased its reputation and production capacity.
I. The Material Basis of PP Pipe: Starting with the Structure of Polypropylene
The four most common categories are as follows:
1. PP-H
It has high rigidity and strong chemical corrosion resistance. It is a "competitive industrial material," commonly used for conveying acid, alkali, and salt solutions.
2. PP-B
It possesses excellent low-temperature impact toughness. So quite suitable for drainage systems, ventilation ducts, and other applications requiring flexibility and impact resistance.
3. PP-R
PP-R is used in non-pressure applications, and provide resistance to highly acidic and basic solutions, such as corrosion inhibitors and chemicals used in hydronic heating and cooling systems. Joints are typically heat fused following standard industry practices.
4. PP-RCT
PP-RCT material has approximately 25% higher stress capability and a 25% higher pressure rating than PP-R pipes for the same wall thickness at a given operating temperature.
II. Structural Forms of PP Pipes
Once the material is chosen, I mean you have decide to buy PP-B or PP-H or other, the pipe can be made in different structures:
1. Single-Layer PP Pipes
Simple and cheap. Good for cold water or small projects.
2. Glass-fiber reinforced PP Pipes
It is common for hot water and floor heating. Can reduces thermal expansion, improves rigidity and dimensional stability.

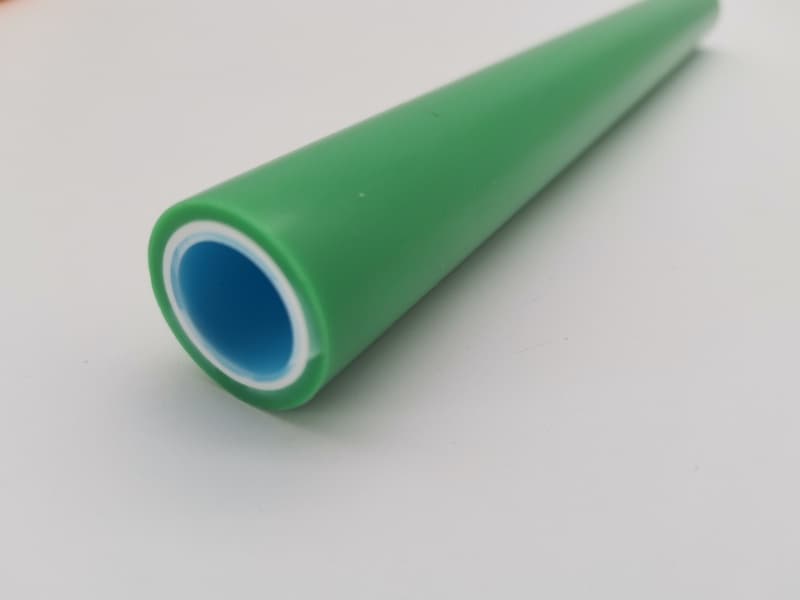

3. Multi-layer composite
Combines PP with aluminum or glass fiber. Very stable and suitable for large projects and high-temperature systems.
III. Material vs. Structure: How They Work Together?
They are not opposing forces, but rather a nested design of "material → structure." Allow me to explain this with an example. Then it might be clear for you if you are confused with purchasing PP pipes.
Case: PP-R (material) can be made into:
Single-Layer Pipe
Fiberglass Reinforced Pipe
Aluminum-Plastic Composite Pipe
All of those three called PP-R. If you don't ask deeper, you might not know their performance, price, and applications differ significantly:
| Structure | Heat Expansion | Stability | Cost | Typical Use |
|---|---|---|---|---|
| Single-layer | High | Medium | Low | Cold water, small projects |
| Glass-fiber reinforced | Medium | High | Medium | Floor heating, hot water |
| Aluminum composite | Low | Very high | High | Large commercial HVAC |
IV. Typical Applications of PP Pipes: From Residential to Municipal, From Domestic to Industrial
1. Building Hot and Cold Water Systems (PP-R Main Application)
Suitable for residential and commercial buildings.
2. Underfloor Heating Systems (PP-R / PP-RCT)
Stable temperature resistance; fiberglass or composite structures reduce the impact of thermal expansion on the floor.
3. Commercial HVAC Systems
PP-RCT is gradually being adopted in circulating hot water and high-flow HVAC systems.
4. Industrial and Chemical Piping Networks (PP-H Main Application)
Treatment of corrosive liquids, wastewater, pure water, etc.
5. Municipal Engineering and Infrastructure
Used for rainwater harvesting, compressed air pipes, and some urban pipeline projects.
V. Key Parameters Affecting Project Reliability: Professional Indicators Hidden Behind the Material
1. Pressure Rating and Wall Thickness (PN/S Series)
Different projects require different pressure ratings, and the wall thickness must match the operating conditions.
2. Creep Performance and Long-Term Pressure Bearing Capacity
Evaluated through ISO 9080 long-term static pressure testing to determine whether a 50-year lifespan can be achieved.
3. Melt Flow Index (MFR) and Welding Performance
Related to the quality of heat fusion connections, affecting whether the entire system will leak.
4. Dimensional Accuracy and Shape Consistency
Outer diameter, wall thickness deviation, and ovality directly affect the heat fusion effect.
5. Antioxidant and Aging Resistance
Oxidation-in-Time (OIT) testing determines its long-term stable operation at high temperatures.
VI. Relationship between PP Pipes and Masterbatch Systems: The Material Basis of Color, Stability, and Lifespan
PP pipes have highly specialized and stringent requirements for masterbatches, and we have accumulated extensive experience in this area.
1. White Masterbatch (Mainly for Hot and Cold Water Pipes)
High temperature resistance
Good dispersibility, no color spots
Suitable for PP-R/PP-RCT extrusion
Food contact grade available
We have been a long-term supplier to numerous hot and cold water pipe factories.
2. Color Masterbatch
Can be applied to dye colorful pipes.
3. Antioxidant/Anti-aging Functional Masterbatch
Improving the high-temperature aging resistance of hot water pipes is a key factor in the lifespan of PP-R/PP-RCT pipes.
4. Antibacterial Masterbatch
Used in drinking water and water purification pipes to ensure hygiene standards.
5. PPA Processing Aids
Improve extrusion stability, reduce material residue, and enhance surface smoothness.
➡️ Standard has mature formulations and case studies for every type of masterbatch commonly used in PP pipes.
VII. Standard's Advantages: Why Global PP Pipe Manufacturers Are Willing to Partner with Us Long-Term
1. Formulation System Originating from 50 Years of Engineering Experience in the United States
Especially outstanding in the following four areas:
High-Temperature Stable System
Long-Term Pressure Life Optimization
Food-Grade Safe Formulation
Long-Term Color Stability
These are precisely the core requirements for PP-R/PP-RCT pipes.
2. Exporting to 50+ Countries, Familiar with Engineering and Audit Requirements in Various Regions
We are very familiar with the food contact, heat resistance, and hygiene requirements of different countries.
3. Fully Equipped: We Can Measuring All the Data Pipe Manufacturers Care About
Spectrophotometer
Melt Flow Indexer (MFR)
Injection Molding Machine
For PP pipe factories, this directly reduces:
Color Difference Issues
Batch Instability
Extrusion Processing Abnormalities
Surface Defects
Making downstream factories' production costs more controllable and production lines more stable. Therefore, whether customers are working on high-end construction projects, drinking water systems, home decoration projects, or industrial conveying, Standard can elevate master batch from a "material" to a "solution."
